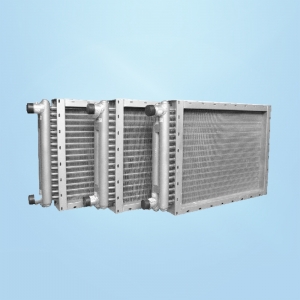

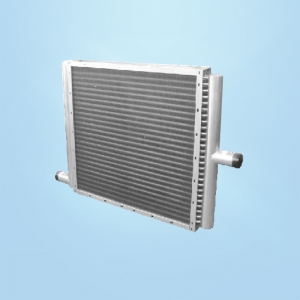

EASTFORCE steam coil type  with copper tubes and corrugated aluminium fins. It has precision die formed and caps and extruded tube holes increase brazed joint strength for years of leak free service. Heavy weight steel or brass threaded inlet and outlet connections for strength and durability.

Standard Material Specifications :

-  Tube        : Copper ( 16mm (5/8”) OD x 1.2 mm Thickness ) no welded U-bend
-  Fins          : Aluminium Corrugated Single Wave Pattern (0.2 mm thickness)
-  Fins Pitch : 3mm
-  Frame      : G.I Sheet ( 1.5 mm thickness )
-  Header     : Carbon Steel BSP screwed male Type Connection
-  Warranty   : 1 year from date of delivery against manufacturing defect on conditions that there is no vibration and water logging

Design Pressure and Temperature

Coil shall be designed to withstand 150 psig steam pressure at 184⁰C. All Coils are leak tested under minimum air pressure of 225 psig and submerged underwater tested using N₂ at 3Mpa.
