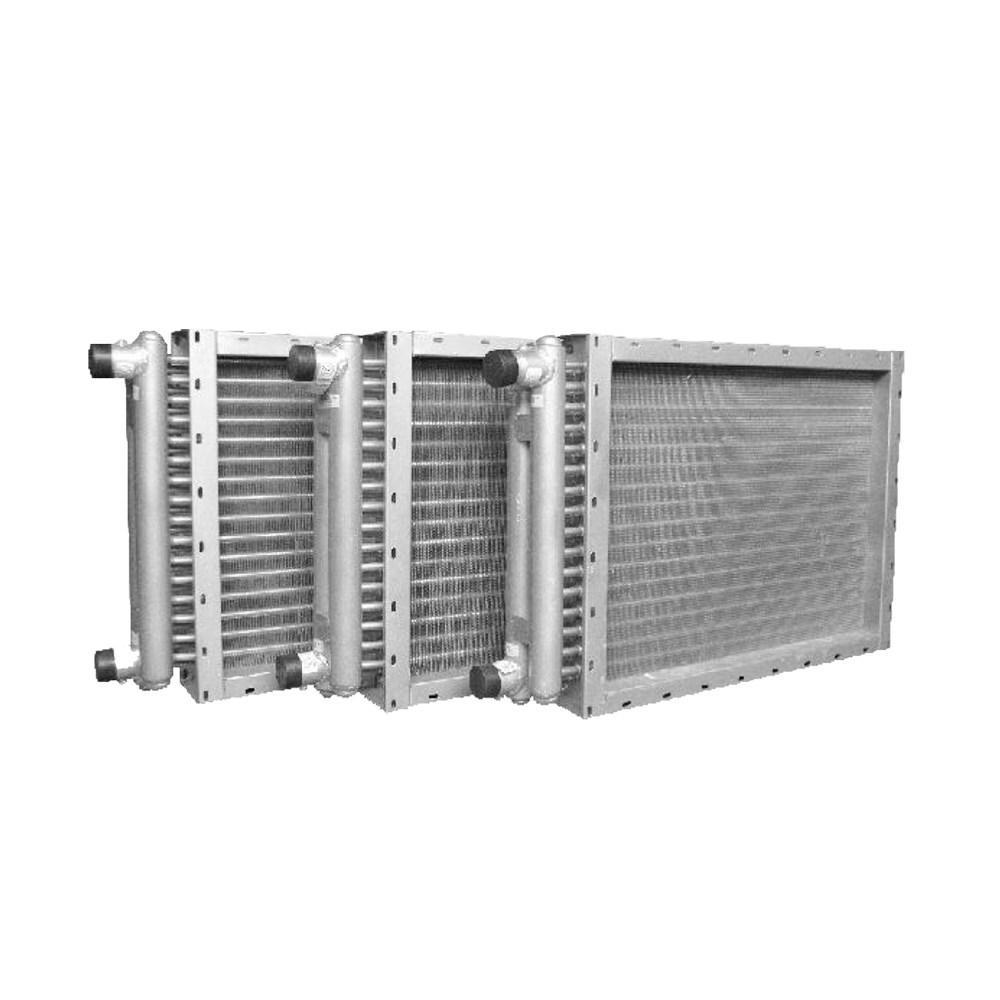

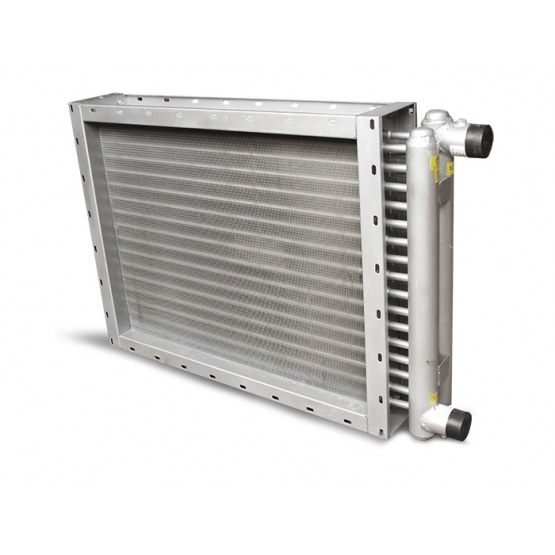

Multi Rows of Tubes with Multi Passes

Finned Heating Coils

Material of construction :
    • Tube                  : Copper tube (5/8” x 1.2mm thickness) no welded joints at U-bend
    • Fin                     : Aluminium Corrugated Single Wave Pattern (0,2mm thickness)
    • Fins Spacing     : 3mm pitch distance
    • Frame                : G.I. Sheet (1.5mm thickness)
    • Header               : Carbon Steel BSPT Screwed Type Connection


Sizes are available :

  • EF 24/24/2R/2P- 11/4"
  • EF 24/32/2R/2P- 2"
  • EF 24/39/2R/2P- 2"
  • EF 24/63/2R/2P- 21/2"
  • EF 32/39/2R/2P- 2"
  • EF 39/39/2R/2P- 21/2"
  • EF 39/39/3R/2P- 21/2"
  • EF 39/47/2R/2P- 21/2"
  • EF 39/63/2R/2P- 21/2"

Nomenclatures :

Types are given according the dimensions of the heater, for instance :
Type EF 24/32/2R/2P- 2” :
24            : Represents 24 inch which equals to 600 mm height
32            : Represents 32 inch which equals to 800 mm length
2R            : Represents 2 rows of tubes
2P            : Represents 2 numbers of Passes
2”             : Represents the header size in screwed connection.
