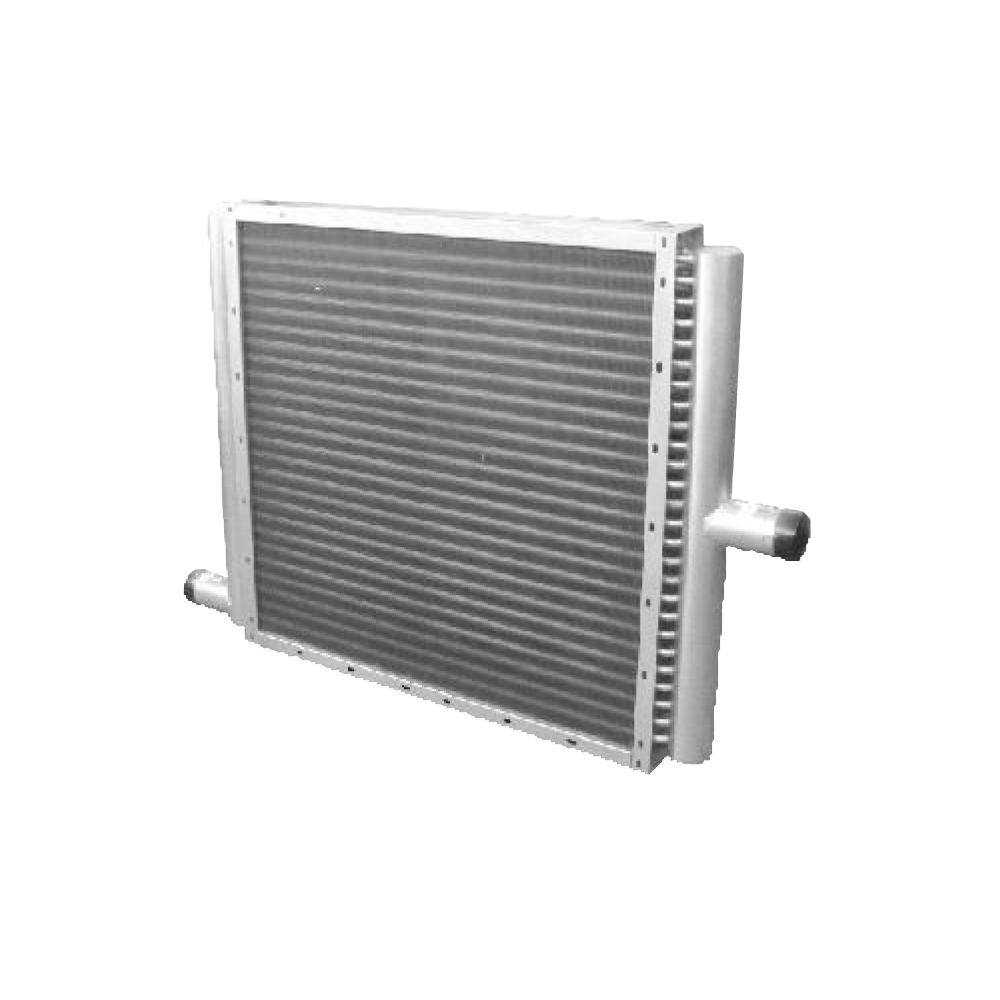

Multi Rows of Tubes with Single Pass

Finned Heating Coils


Materials of construction :

  • Tube                : Copper (15.9mmOD x 1.2mm Thickness)
  • Fin                   : Aluminium Corrugated Single Wave Pattern (0.2mm Thickness)
  • Fins Spacing    : 3mm
  • Frame              : G.I. Sheet (1.5mm Thickness)
  • Header             : Carbon Steel BSPT Screwed Type Connection

Sizes are available :

  • SC 39/39/2R/1P- 21/2"
  • SC 39/39/3R/1P- 3"
  • SC 42/42/2R/1P- 21/2"

Nomenclatures :

Types are given according the dimensions of the heater, for instance :
Type SC 39/39/2R/1P-21/2” :
39            : Represents 39 inch which equals to 991 mm in height
39            : Represents 39 inch which equals to 991 mm in length
2R            : Represents 2 rows of tubes
1P            : Represents 1 number of pass
21/2”         : Represents the header size in screwed connection.
