Medium Pressure Centrifugal Fans

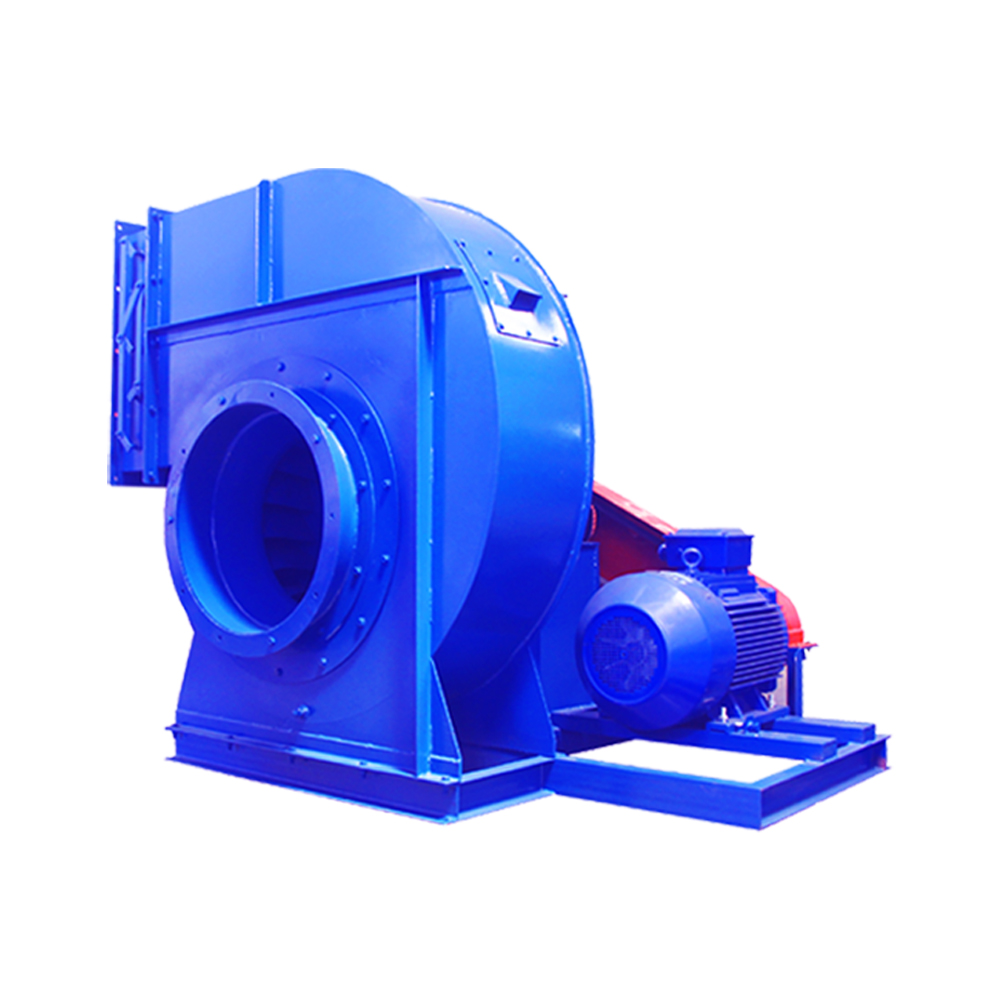

MEDIUM PRESSURE AT MEDIUM AIR VOLUME (S - TYPE)
EASTFORCE Centrifugal Fan type S suitable for air separation by blowing or suctions system. Well suited for all type or ventilation plants and where the air has a relatively high dust.
APPLICATION
Type S-Series Fan are widely applicable for palm kernel recovery plant for material separation as well as pneumatic transport.
DESIGN
The S-Series Fan has 6 standard sizes with impeller diameter from 500mm to 1000mm. All sizes can be furnished on order with 16 types of discharge position either clockwise or anti clockwise. It has "S" shaped backward curve impeller blade, welded construction and designed for relatively high speed.
All sizes of fans can be supplied with direct coupled or by V belt drive using heavy duty plummer block bearings. Finished with 2 coats of anti rust-primer and 1 coat of good quality paints. The rotating parts are statically and dynamically balanced ensuring vibrationless operation. Standard fan shall have fan inlet flange.
OPTIONS
Anti vibration mountings, special design for hot air, fan multi-opposed outlet damper
