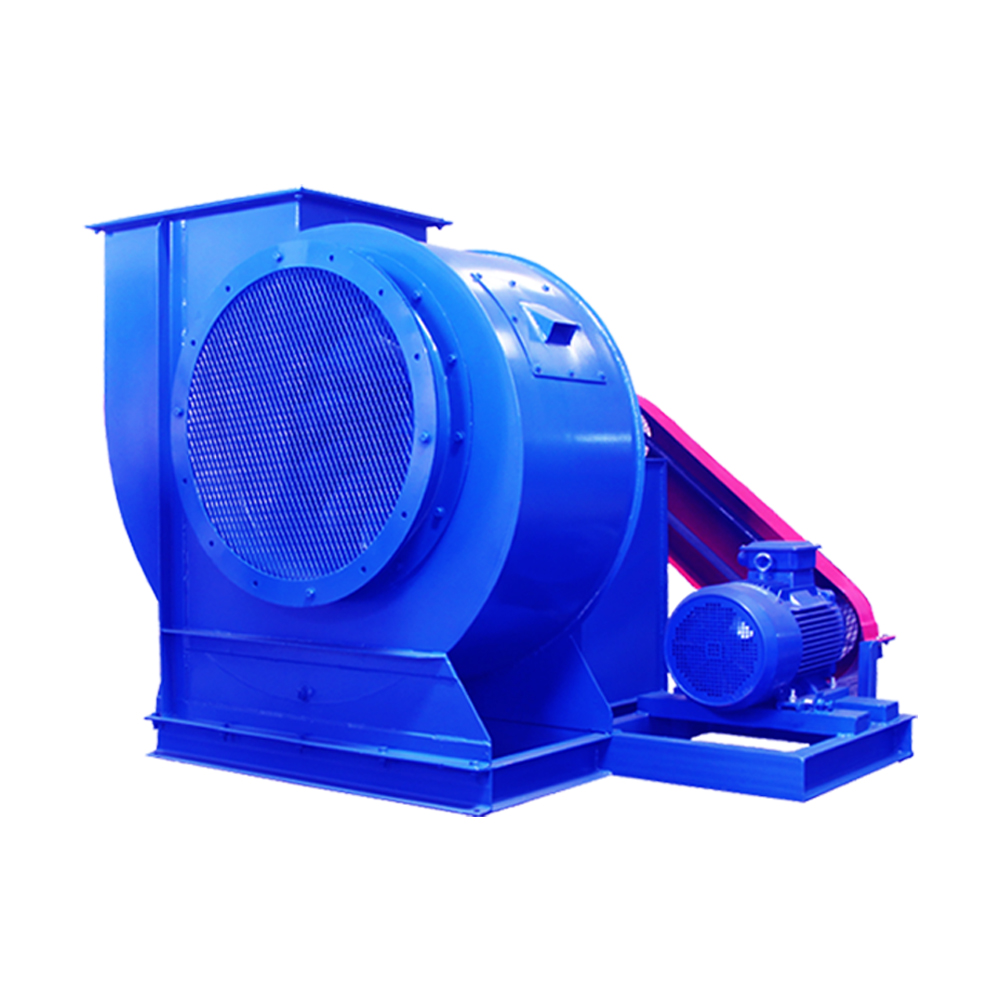

Low Pressure Centrifugal Fans
LOW PRESSURE AT HIGH AIR VOLUME (L-Type)
EASTFORCE Centrifugal Fan Type L suitable for commercial ventilation and air conditioning. The fans have been designed with high efficiency and universal installation.
APPLICATION
Type L-Series Fan are widely applicable for palm kernel recovery plant for kernel & nut drying silos as well as aeration fan for kernel bulking silos.
DESIGN
The L-Series Fan has 7 standard sizes with impeller diameter from 315mm to 900mm. All sizes can be furnished on order with the 16 type of discharge position either clockwise or anti clockwise. It has backward curved impeller blade, welded construction and designed for relatively high speed.All sizes of fans can be supplied with direct coupled or by V belt drive using heavy duty plummer block bearings. Finished with 2 coats of anti rust-primer and 1 coat of good quality paints. The rotating parts are statically and dynamically balanced ensuring vibrationless operation. Standard fan shall have fan inlet flange.
OPTION
Anti vibration mountings, special design for hot air, fan multi-opposed outlet damper.
